ComboFlex is a multi-purpose PVC covered hose, suitable for short-distance industrial fluid transportation. The outer and inner layers of its use PVC composite technology, which makes it has excellent wear resistance and long service lifespan. At the same time, the hose kink resistance and aging resistance, can be used in most environment and not affected by the weather.

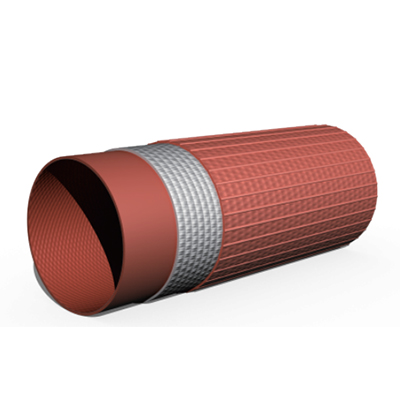

CONSTRUCIONO 01 ●Outer layer: PVC ●Woven reinforcement: high-strength polyester filament ●The inner layer: PVC |
TYPE | I.D. | W.P. | B.P. | |||
CF | Inch | mm | Psi | Bar | Psi | Bar |
CF40 |
1-1/2” |
40 |
100 150 200 235 300 | 8 10 13 16 21 | 360 450 600 700 900 | 21 3141 48 62 |
CF50 |
2” |
50 |
100 150 200 235 300 | 8 10 13 16 21 | 360 450 600 700 900 | 21 3141 48 62 |
CF65 |
2-1/2” |
65 |
100 150 200 235 300 | 8 10 13 16 21 | 360 450 600 700 900 | 21 3141 48 62 |
CF80 |
3” |
80 |
100 150 200 235 300 | 8 10 13 16 21 | 360 450 600 700 900 | 21 3141 48 62 |
CF100 |
4” |
100 |
100 150 200 235 | 8 10 13 16 | 360 450 600 700 | 21 3141 48 |
